Support for the Gevako RS5

Manual, YAML, and ESP32-C6 Firmware

Gevako RS5 Installation and User Manual version1.2.1
Gevako RS5 - Installation and User Manual - EN

Firmware releases

RS5 Firmware

GitHub page including YAML files

RS5 GitHub

GPIO pin overview ESP32-C6

GPIO pinDescription
GPIO01Output 1
GPIO02Output 2
GPIO03Output 3
GPIO04Output 4
GPIO05Output 5
GPIO08Green LED
GPIO09BOOT / Reboot (2 s) / Factory reset (10 s)
GPIO14Power source detection

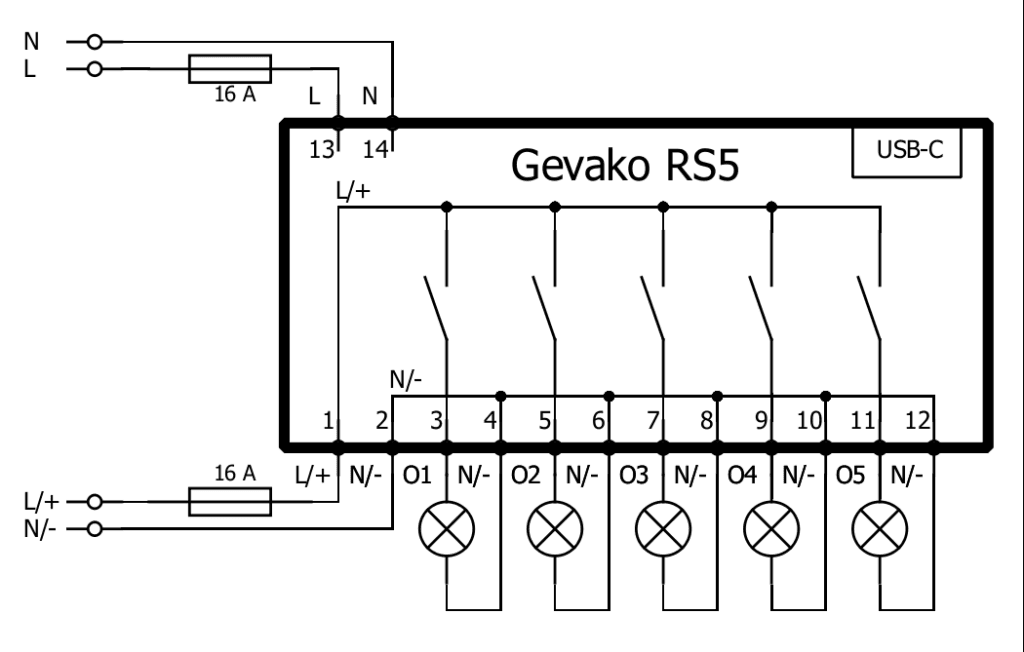

Example wiring diagram

Smart Switch - Home Assistant - Smart Relay - Gevako

Firmware Installer

Install the latest firmware over USB.

Firmware Installer

Thread Provisioning Tool

Write your TLV code to your device.

Thread Provisioning Tool
